Heavy-Duty Multi-Tier Aluminum Alloy Cable Cleat Wholesale

Home / Products / Wire Mesh Cable Tray Series / Cable Management System / Heavy-Duty Multi-Tier Aluminum Alloy Cable Cleat

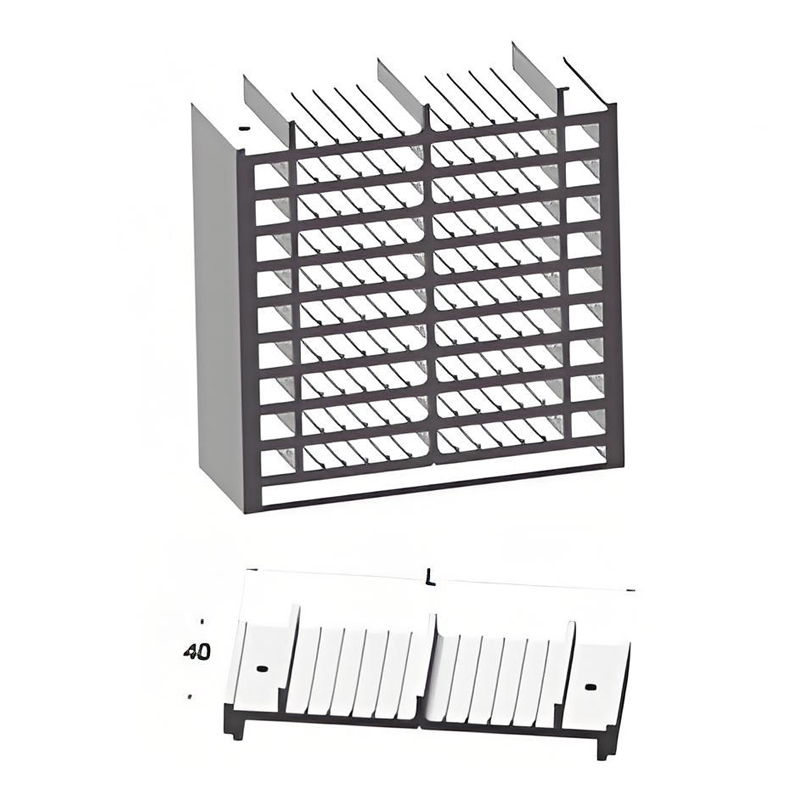

Heavy-Duty Multi-Tier Aluminum Alloy Cable Cleat

The Heavy-Duty Multi-Tier Aluminum Alloy Cable Cleat is engineered for modern data centers, high-density server rooms, and various weak current engineering projects. It is widely applied to server racks, cable trays, and vertical shafts within structured cabling systems, offering precise tiered and grouped management for Cat5e and Cat6 network cables to prevent cable deformation and signal degradation caused by gravitational sagging.

Constructed from premium high-strength aluminum alloy, this cable cleat provides exceptional mechanical durability and weather resistance, completely eliminating the cracking and aging risks associated with traditional plastic alternatives while meeting the flame-retardant and thermal safety standards of modern IT facilities. With a standardized tier height of 10mm, each level perfectly accommodates 12 network cables. The structured matrix layout not only facilitates natural air convection for heat dissipation but also creates a clean appearance that enhances project acceptance standards.

The product features a highly practical structural design, with each tier secured by two high-strength male-to-female screws. This symmetrical dual-screw locking mechanism ensures that cables remain firmly in place without displacement, even in environments with equipment vibrations. A recommended installation interval of 300mm achieves optimal weight distribution. The modular stackable structure excels in late-stage maintenance, allowing technicians to loose screws of a specific tier to swap or adjust cables without disrupting the operation of other levels.

Contact Us
  • Heavy-Duty Multi-Tier Aluminum Alloy Cable Cleat
  • Heavy-Duty Multi-Tier Aluminum Alloy Cable Cleat
Product description

Model

Applicable wire diameter

Length

Width

Base plate length

Mother and daughter screws

5mm*12

4-5 mm

95mm

40mm

95mm

5+5

6mm*12

5-6mm

105mm

40mm

105mm

6+6

7mm*12

6-7mm

115mm

40mm

115mm

6+6

8mm*12

7-8mm

120mm

40mm

120mm

8+6

6mm*24

5-6mm

195mm

40mm

195mm

6+6

8mm*10

7-8mm

105mm

40mm

105mm

8+6

10mm*8

9-10mm

105mm

40mm

105mm

10+6

10mm*12

9-10mm

143mm

40mm

143mm

10+6
